| Hình nón (đơn) |
|
Giới thiệu chi tiết hàng hóa(chǎn):

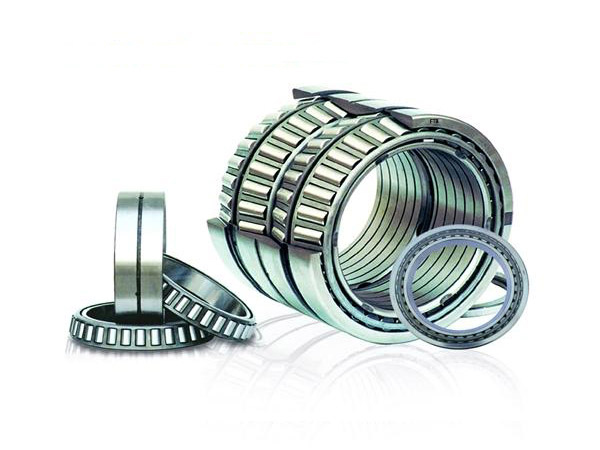

Hình nón đế quốc (cột đơn): Vòng bi lăn hình nón chủ yếu được sử dụng để chịu tải trọng kết hợp xuyên tâm và trục chủ yếu là tải trọng xuyên tâm. Vòng ngoài có thể được tách ra và lắp ráp dễ dàng. Trong quá trình lắp đặt và sử dụng có thể điều chỉnh khe trục và khe xuyên tâm, có thể cài đặt trước. |
|
| Mô hình mang |
Kích thước cơ bản |
Tải trọng định mức cơ bản(kN) |
Tốc độ quay giới hạn(rpm) |
Cân nặng
(kg) |
| dxDxT |
Di chuyển
(Cr) |
Tĩnh
(Cor) |
Mỡ bôi trơn |
Dầu bôi trơn |
| HM926740/HM926710 |
114.3x228.6x53.975 |
365 |
590 |
1700 |
2400 |
9.78 |
| K795/K792 |
120.65x206.375x47.625 |
330 |
550 |
1600 |
2200 |
6.28 |
| HH926749/HH926710 |
120.65x273.05x82.55 |
815 |
940 |
1700 |
2400 |
22.1 |
| K48282/K48220 |
120.65x182.562x39.688 |
228 |
430 |
1700 |
2400 |
3.56 |
| K95500/K95925 |
127x234.95x63.5 |
515 |
810 |
1700 |
2400 |
11.6 |
| KHM926747/KHM926710 |
127x228.6x53.975 |
400 |
590 |
1700 |
2400 |
8.88 |
| K799/K792 |
128.588x206.375x47.625 |
330 |
550 |
1600 |
2200 |
5.7 |
| 67389/67322 |
130.175x196.85x46.038 |
330 |
590 |
1600 |
2200 |
4.96 |
| K67390/K67322 |
133.35x196.85x46.038 |
380 |
420 |
1600 |
2200 |
4.71 |
| 95525/95925 |
133.35x234.95x63.5 |
515 |
810 |
1500 |
2000 |
11.1 |
| KHM231132/KHM231110 |
139.7x236.538x57.15 |
510 |
810 |
1400 |
1900 |
10.1 |
| K99550/K99100 |
139.7x254x66.675 |
715 |
1100 |
1400 |
1900 |
14 |
| K898/K892 |
139.7x228.6x57.15 |
370 |
680 |
1400 |
1900 |
8.85 |
| K36690/K36620B |
146.05x193.675x28.575 |
186 |
370 |
1600 |
2200 |
2.22 |
| KHH932145/KHH932110 |
146.05x304.8x88.9 |
835 |
1140 |
1100 |
1600 |
28.3 |
| KM231649/KM231610 |
152.4x222.25x88.9 |
263 |
540 |
1100 |
1600 |
5.76 |
| K99600/K99100 |
152.4x254x66.675 |
595 |
930 |
1100 |
1600 |
12.5 |
| KEE107060/K107105 |
152.4x268.288x74.612 |
670 |
1070 |
1200 |
1700 |
16.8 |
| EE107060/107105 |
152.4x268.288x74.612 |
670 |
1070 |
1200 |
1700 |
16.8 |
| KHH234048/KHH234010 |
152.4x307.975x88.9 |
1190 |
1350 |
1100 |
1600 |
30.9 |
| K46780/K46720 |
158.75x225.425x41.275 |
261 |
440 |
1100 |
1600 |
5.24 |
| K46790/K46720 |
165.1x225.425x41.275 |
261 |
565 |
1100 |
1600 |
4.64 |
| K67780/K67720 |
165.1x247.65x47.625 |
415 |
520 |
1000 |
1400 |
8.16 |
| KHM237535/KHM237510 |
165.1x288.925x63.5 |
625 |
670 |
1100 |
1600 |
16.8 |
| KHH437549/KHH437510 |
165.1x336.55x92.075 |
1320 |
1500 |
900 |
1300 |
37.4 |
| KHM237542/KHM237510 |
174.625x288.925x63.5 |
815 |
850 |
1000 |
1400 |
16.9 |
| KHM237545/KHM237510 |
174.625x288.925x63.5 |
815 |
850 |
1000 |
1400 |
16.9 |
| K67790/K67720 |
177.8x247.65x47.625 |
415 |
520 |
1000 |
1400 |
7.12 |
| M236849/M236810 |
177.8x260.35x53.975 |
430 |
840 |
1000 |
1400 |
9.08 |
| KM236849/KM236810 |
177.8x260.35x53.975 |
430 |
840 |
1000 |
1400 |
9.08 |
| KHM237545/KHM237510 |
177.8x288.925x63.5 |
815 |
850 |
900 |
1300 |
16.7 |
| KEE350701/K351687 |
177.8x428.628x106.362 |
1320 |
1840 |
900 |
1000 |
68.1 |
| M336948/M336912 |
178.595x265.112x51.595 |
485 |
870 |
1000 |
1400 |
9.75 |
| M336949/M336912 |
179.934x265.112x51.595 |
485 |
870 |
1000 |
1400 |
9.55 |
| K67883CL4/K67820CL4 |
184.15x266.7x47.625 |
485 |
520 |
900 |
1000 |
8.34 |
| K67883/K67830 |
184.15x280x46.525 |
360 |
760 |
900 |
1000 |
10.1 |
| 87737/87111 |
187.325x282.575x50.8 |
395 |
690 |
900 |
1000 |
9.95 |
| KM238849/KM238810 |
187.325x269.875x55.562 |
425 |
860 |
900 |
1000 |
9.63 |
| M239449/M239410 |
190.475x279.4x52.388 |
515 |
985 |
900 |
1000 |
9.8 |
| K67885/K67820 |
190.5x266.7x47.625 |
345 |
725 |
1100 |
1500 |
8.04 |
| KEE420751/K421437 |
190.5x365.049x92.075 |
990 |
1460 |
900 |
1000 |
39.3 |
| M239448A/M239410 |
191.237x279.4x52.388 |
515 |
985 |
900 |
1000 |
9.55 |
| KLL639249/KLL639210 |
196.85x241.3x23.812 |
160 |
330 |
1200 |
1700 |
2.1 |
| KLM739749/KLM739710 |
196.85x257.175x39.688 |
275 |
635 |
1100 |
1600 |
5.2 |
| K93775/K93125 |
196.85x317.5x63.5 |
605 |
1130 |
850 |
1200 |
18.8 |
| LM241147/LM241100 |
200.025x276.225x42.862 |
445 |
780 |
1000 |
1500 |
7.75 |
| LM241148/LM241100 |
203.987x276.225x42.862 |
445 |
780 |
1000 |
1500 |
7.35 |
| 67985/67920 |
206.375x282.575x46.038 |
375 |
840 |
1000 |
1500 |
8.7 |
| 93825/93125 |
209.55x317.5x63.5 |
605 |
1130 |
850 |
1200 |
16.6 |
| K93825/K93125 |
209.55x317.5x63.5 |
605 |
1130 |
850 |
1200 |
16.6 |
| LM742749/LM742710 |
215.9x285.75x46.038 |
375 |
840 |
1000 |
1500 |
8 |
| LM742747/LM742710 |
216.408x285.75x46.038 |
375 |
840 |
1000 |
1500 |
7.95 |
| KM244249/KM244210 |
220.662x314.325x61.912 |
620 |
1220 |
1000 |
1500 |
14.9 |
| KM249732/KM249710-1 |
228.6x358.775x71.438 |
750 |
1500 |
950 |
1300 |
27.2 |
| HH949549/HH949510 |
228.6x488.95x123.825 |
1820 |
2490 |
750 |
1000 |
101 |
| LM245846/LM245810 |
230.188x317.5x47.625 |
520 |
985 |
900 |
1200 |
10.6 |
| 544091/544118A |
231.775x300.038x33.338 |
212 |
420 |
950 |
1300 |
5.4 |
| LM245848/LM245810 |
231.775x317.5x47.625 |
520 |
985 |
900 |
1200 |
10.6 |
| KM246942/KM246910 |
231.775x336.55x65.088 |
640 |
1360 |
850 |
1200 |
18.5 |
| KH247549/KH247510 |
234.95x384.175x112.712 |
1360 |
2540 |
750 |
1000 |
50 |
| KM246949/KM246910 |
237.33x336.55x65.088 |
640 |
1360 |
850 |
1200 |
17.5 |
| KEE923095/K923175 |
241.3x444.5x101.6 |
1340 |
2000 |
750 |
1000 |
65.9 |
| KEE390095/K390200 |
241.3x508x117.475 |
1340 |
2060 |
670 |
900 |
96.4 |
| KM348449/KM348410 |
247.65x346.075x63.5 |
670 |
1310 |
850 |
1200 |
17.4 |
| HH249949/HH249910 |
247.65x406.4x115.888 |
1690 |
3200 |
750 |
1000 |
58 |
| M349547SH/M349510SH |
255.6x342.9x57.15 |
665 |
1330 |
850 |
1200 |
14.4 |
| KM349549/KM349510 |
257.175x342.9x57.15 |
725 |
880 |
850 |
1200 |
14 |
| M249747SH/M249710SH |
257.175x358.775x71.438 |
750 |
1520 |
850 |
1200 |
21.7 |
| HM252348/HM252310 |
260.35x422.275x86.121 |
1100 |
1800 |
900 |
1300 |
42.8 |
| 38880/38820 |
263.525x325.438x28.575 |
1280 |
1790 |
1000 |
1500 |
54.2 |
| KLM451349/KLM451310 |
266.7x355.6x57.15 |
715 |
800 |
850 |
1200 |
15.1 |
| KEE275105/K275155 |
266.7x393.7x73.817 |
770 |
1460 |
750 |
1000 |
27.8 |
| KH852849/KH852810 |
266.7x444.5x120.65 |
1610 |
3050 |
670 |
900 |
73.1 |
| KEE275108/K275155 |
273.05x393.7x73.817 |
770 |
1460 |
750 |
1000 |
26.3 |
| M255449/M255410 |
288.925x406.4x77.788 |
1250 |
1900 |
670 |
900 |
30.5 |
| L555249/L555210 |
292.1x374.65x47.625 |
1080 |
1590 |
780 |
1050 |
12.2 |
| KL357049/KL357010 |
304.8x393.7x50.8 |
580 |
1210 |
670 |
900 |
14.6 |
| LM757049/LM757010 |
304.8x406.4x63.5 |
2200 |
2800 |
670 |
900 |
21.2 |
| HM259048/HM259010 |
317.5x447.675x85.725 |
960 |
2330 |
670 |
900 |
41.3 |
| KL860049/KL860010 |
330.2x415.925x47.625 |
475 |
1140 |
670 |
900 |
14.3 |
| EE526130/526190 |
330.2x482.6x85.725 |
1200 |
2480 |
600 |
830 |
49.2 |
| HM261049/HM261010 |
333.375x469.9x90.488 |
1320 |
2820 |
600 |
830 |
47.6 |
| LM361649A/LM361610 |
343.154x450.85x66.675 |
930 |
2180 |
650 |
850 |
28.3 |
| HM262749/HM262710 |
346.075x488.95x95.25 |
845 |
1180 |
600 |
830 |
55.8 |
| 306/355.6-1 |
355.6x482.6x60.32 |
565 |
1180 |
600 |
830 |
26.6 |
| H961649/H961610 |
371.5x622.3x147.638 |
2300 |
3600 |
420 |
580 |
180 |
| KLM565946/KLM565910 |
377.825x522.288x85.725 |
1170 |
2580 |
670 |
900 |
51.9 |
| L865547/L865512 |
381x479.425x49.212 |
590 |
1490 |
560 |
750 |
20.4 |
| KLM565949/KLM565910 |
381x522.288x85.725 |
1170 |
2580 |
650 |
870 |
51.2 |
| HM266449/HM266410 |
384.175x546.1x104.775 |
1850 |
4150 |
530 |
700 |
77.6 |
| LM567949/LM567910 |
406.4x549.275x85.725 |
1350 |
3000 |
600 |
800 |
54 |
| EE285160/EE285226 |
406.4x574.625x76.2 |
920 |
2030 |
500 |
650 |
54.2 |
| H969249/H969210 |
406.4x762x180.975 |
3650 |
6050 |
350 |
480 |
322 |
| KEE234160/K234215 |
406.4x546.1x76.2 |
840 |
1830 |
630 |
850 |
41.8 |
| M268749/M268710 |
415.925x590.55x114.3 |
1810 |
4030 |
480 |
650 |
96.6 |
| EE241693/242375 |
430.212x603.25x76.2 |
1050 |
2300 |
480 |
650 |
58.6 |
| M270749/M270710 |
447.625x635x120.65 |
2300 |
5450 |
430 |
560 |
121 |
| L570649/L570610 |
457.2x573.088x74.612 |
1100 |
2980 |
480 |
630 |
43.8 |
| LM770949/LM770910 |
457.2x603.25x85.725 |
1420 |
3390 |
450 |
600 |
62 |
| LM272235/LM272210 |
457.2x615.95x85.725 |
1450 |
3750 |
420 |
580 |
73.2 |
| EE737181/737260 |
457.2x660.4x91.28 |
1750 |
3600 |
420 |
580 |
91.5 |
| EE243190/243250 |
482.6x634.873x80.962 |
1430 |
3600 |
420 |
580 |
60.8 |
| LM772748/LM772710 |
488.95x634.873x84.138 |
1420 |
3600 |
420 |
580 |
64.5 |
| EE982051/982900 |
520.7x736.6x88.9 |
1630 |
3350 |
380 |
500 |
101 |
| M276449/M276410 |
536.575x761.873x146.05 |
3300 |
7950 |
360 |
480 |
202 |
| LL575349/LL575310 |
539.75x635x50.8 |
780 |
2150 |
400 |
530 |
27.2 |
| EE649239/649310 |
607.72x787.4x93.662 |
2200 |
2800 |
340 |
450 |
108 | |
|
|
