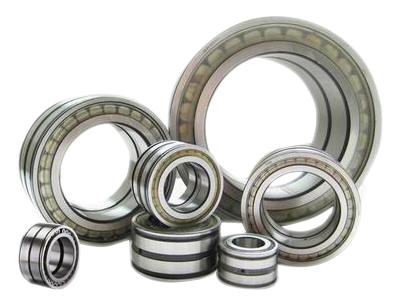

| SL18 單列 |
|
| 單列滾子的SL18系列包含 SL18 18 系列、SL18 22系列 、SL18 29 系列、SL18 30 系列 共四種類型。 |
|
1. SL18 18 系列
|
型號 |
基本尺寸(mm) |
重量 |
|
INA |
d |
D |
B |
KG |
|
SL18 1840 |
200 |
250 |
24 |
2.57 |
|
SL18 1844 |
220 |
270 |
24 |
2.8 |
|
SL18 1848-E |
240 |
300 |
28 |
4.29 |
|
SL18 1852-E |
260 |
320 |
28 |
4.61 |
|
SL18 1856-E |
280 |
350 |
33 |
6.89 |
|
SL18 1860-E |
300 |
380 |
38 |
9.79 |
|
SL18 1864-E |
320 |
400 |
38 |
10.36 |
|
SL18 1868-E |
340 |
420 |
38 |
10.93 |
|
SL18 1872-E |
360 |
440 |
38 |
11.49 |
|
SL18 1876-E |
380 |
480 |
46 |
18.87 |
|
SL18 1880-E |
400 |
500 |
46 |
19.81 |
|
SL18 1884-E |
420 |
520 |
46 |
20.6 |
|
SL18 1888-E |
440 |
540 |
46 |
21.54 |
|
SL18 1892-E |
460 |
580 |
56 |
33.21 |
|
SL18 1896-E |
480 |
600 |
56 |
34.53 |
|
SL18 18/500-E |
500 |
620 |
56 |
35.73 |
2. SL18 22系列
|
型號 |
基本尺寸(mm) |
重量 |
|
INA |
d |
D |
B |
KG |
|
SL182204 |
20 |
47 |
18 |
0.16 |
|
SL182205 |
25 |
52 |
18 |
0.18 |
|
SL182206 |
30 |
62 |
20 |
0.3 |
|
SL182207 |
35 |
72 |
23 |
0.44 |
|
SL182208 |
40 |
80 |
23 |
0.55 |
|
SL182209 |
45 |
85 |
23 |
0.59 |
|
SL182210 |
50 |
90 |
23 |
0.64 |
|
SL182211 |
55 |
100 |
25 |
0.87 |
|
SL182212 |
60 |
110 |
28 |
1.18 |
|
SL182213 |
65 |
120 |
31 |
1.57 |
|
SL182214 |
70 |
125 |
31 |
1.66 |
|
SL182215 |
75 |
130 |
31 |
1.75 |
|
SL182216 |
80 |
140 |
33 |
2.15 |
|
SL182217 |
85 |
150 |
36 |
2.74 |
|
SL182218 |
90 |
160 |
40 |
3.48 |
|
SL182219 |
95 |
170 |
43 |
4.17 |
|
SL182220 |
100 |
180 |
46 |
5.13 |
|
SL182222 |
110 |
200 |
53 |
7.24 |
|
SL182224 |
120 |
215 |
58 |
9.08 |
|
SL182226 |
130 |
230 |
64 |
11.25 |
|
SL182228 |
140 |
250 |
68 |
14.47 |
|
SL182230 |
150 |
270 |
73 |
18.43 |
|
SL182232 |
160 |
290 |
80 |
23 |
|
SL182234 |
170 |
310 |
86 |
28.65 |
|
SL182236 |
180 |
320 |
86 |
29.8 |
|
SL182238 |
190 |
340 |
92 |
35.65 |
|
SL182240 |
200 |
360 |
98 |
43.12 |
3.SL18 29系列
|
型號 |
基本尺寸(mm) |
重量 |
|
INA |
d |
D |
B |
KG |
|
SL182912 |
60 |
85 |
16 |
0.29 |
|
SL182913 |
65 |
90 |
16 |
0.31 |
|
SL182914 |
70 |
100 |
19 |
0.49 |
|
SL182915 |
75 |
105 |
19 |
0.52 |
|
SL182916 |
80 |
110 |
19 |
0.55 |
|
SL182917 |
85 |
120 |
22 |
0.81 |
|
SL182918 |
90 |
125 |
22 |
0.84 |
|
SL182919 |
95 |
130 |
22 |
0.86 |
|
SL182920 |
100 |
140 |
24 |
1.14 |
|
SL182922 |
110 |
150 |
24 |
1.23 |
|
SL182924 |
120 |
165 |
27 |
1.73 |
|
SL182926 |
130 |
180 |
30 |
2.33 |
|
SL182928 |
140 |
190 |
30 |
2.42 |
|
SL182930 |
150 |
210 |
36 |
3.77 |
|
SL182932 |
160 |
220 |
36 |
4 |
|
SL182934 |
170 |
230 |
36 |
4.3 |
|
SL182936 |
180 |
250 |
42 |
6.2 |
|
SL182938 |
190 |
260 |
42 |
6.5 |
|
SL182940 |
200 |
280 |
48 |
9.1 |
|
SL182944 |
220 |
300 |
48 |
9.9 |
|
SL182948 |
240 |
320 |
48 |
10.6 |
|
SL182952 |
260 |
360 |
60 |
18.5 |
|
SL182956 |
280 |
380 |
60 |
19.7 |
|
SL182960 |
300 |
420 |
72 |
31.2 |
|
SL182964 |
320 |
440 |
72 |
32.9 |
|
SL182968 |
340 |
460 |
72 |
34.7 |
|
SL182972 |
360 |
480 |
72 |
36.4 |
|
SL182976 |
380 |
520 |
82 |
52.1 |
|
SL182980 |
400 |
540 |
82 |
54.3 |
|
SL182984 |
420 |
560 |
82 |
56.9 |
|
SL182988 |
440 |
600 |
95 |
78.1 |
|
SL182992 |
460 |
620 |
95 |
81.1 |
|
SL182996 |
480 |
650 |
100 |
94.7 |
|
SL1829/500 |
500 |
670 |
100 |
98.3 |
4. SL18 30系列
|
型號 |
基本尺寸(mm) |
重量 |
|
INA |
d |
D |
B |
KG |
|
SL183004 |
20 |
42 |
16 |
0.11 |
|
SL183005 |
25 |
47 |
16 |
0.12 |
|
SL183006 |
30 |
55 |
19 |
0.2 |
|
SL183007 |
35 |
62 |
20 |
0.26 |
|
SL183008 |
40 |
68 |
21 |
0.31 |
|
SL183009 |
45 |
75 |
23 |
0.4 |
|
SL183010 |
50 |
80 |
23 |
0.43 |
|
SL183011 |
55 |
90 |
26 |
0.64 |
|
SL183012 |
60 |
95 |
26 |
0.69 |
|
SL183013 |
65 |
100 |
26 |
0.73 |
|
SL183014 |
70 |
110 |
30 |
1.02 |
|
SL183015 |
75 |
115 |
30 |
1.06 |
|
SL183016 |
80 |
125 |
34 |
1.43 |
|
SL183017 |
85 |
130 |
34 |
1.51 |
|
SL183018 |
90 |
140 |
37 |
1.97 |
|
SL183020 |
100 |
150 |
37 |
2.15 |
|
SL183022 |
110 |
170 |
45 |
3.5 |
|
SL183024 |
120 |
180 |
46 |
3.8 |
|
SL183026 |
130 |
200 |
52 |
5.65 |
|
SL183028 |
140 |
210 |
53 |
6.04 |
|
SL183030 |
150 |
225 |
56 |
7.33 |
|
SL183032 |
160 |
240 |
60 |
8.8 |
|
SL183034 |
170 |
260 |
67 |
12.2 |
|
SL183036 |
180 |
280 |
74 |
16.1 |
|
SL183038 |
190 |
290 |
75 |
17 |
|
SL183040 |
200 |
310 |
82 |
21.8 |
|
SL183044 |
220 |
340 |
90 |
28.4 |
|
SL183048 |
240 |
360 |
92 |
30.9 |
|
SL183052 |
260 |
400 |
104 |
44.5 |
|
SL183056 |
280 |
420 |
106 |
48 |
|
SL183060-TB |
300 |
460 |
118 |
66.6 |
|
SL183064-TB |
320 |
480 |
121 |
71.7 |
|
SL183068-TB |
340 |
520 |
133 |
95.8 |
|
SL183072-TB |
360 |
540 |
134 |
101 |
|
SL183076-TB |
380 |
560 |
135 |
106 |
|
SL183080-TB |
400 |
600 |
148 |
140 | |
|
|
