| SL02系列 |
|

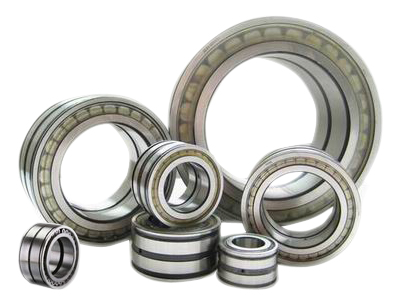

| SL02系列是雙列滾子，兩側沒有擋邊的游動軸承。 |
|
|
型號 |
基本尺寸(mm) |
重量 |
型號 |
基本尺寸(mm) |
重量 |
|
INA |
d |
D |
B |
KG |
INA |
d |
D |
B |
KG |
|
|
|
|
|
|
SL02 4912 |
60 |
85 |
25 |
0.47 |
|
|
|
|
|
|
SL02 4914 |
70 |
100 |
30 |
0.75 |
|
|
|
|
|
|
SL02 4916 |
80 |
110 |
30 |
0.85 |
|
|
|
|
|
|
SL02 4918 |
90 |
125 |
35 |
1.3 |
|
|
|
|
|
|
SL02 4920 |
100 |
140 |
40 |
1.9 |
|
|
|
|
|
|
SL02 4922 |
110 |
150 |
40 |
2.1 |
|
|
|
|
|
|
SL02 4924 |
120 |
165 |
45 |
2.95 |
|
|
|
|
|
|
SL02 4926 |
130 |
180 |
50 |
3.8 |
|
|
|
|
|
|
SL02 4928 |
140 |
190 |
50 |
4.1 |
|
SL02 4830 |
150 |
190 |
40 |
2.8 |
SL02 4930 |
150 |
210 |
60 |
6.45 |
|
SL02 4832 |
160 |
200 |
40 |
3 |
SL02 4932 |
160 |
220 |
60 |
6.8 |
|
SL02 4834 |
170 |
215 |
45 |
3.95 |
SL02 4934 |
170 |
230 |
60 |
7.1 |
|
SL02 4836 |
180 |
225 |
45 |
4.15 |
SL02 4936 |
180 |
250 |
69 |
10.5 |
|
SL02 4838 |
190 |
240 |
50 |
5.45 |
SL02 4938 |
190 |
260 |
69 |
10.9 |
|
SL02 4840 |
200 |
250 |
50 |
5.7 |
SL02 4940 |
200 |
280 |
80 |
15.3 |
|
SL02 4844 |
220 |
270 |
50 |
6.2 |
SL02 4944 |
220 |
300 |
80 |
16.7 |
|
SL02 4848 |
240 |
300 |
60 |
9.9 |
SL02 4948 |
240 |
320 |
80 |
17.9 |
|
SL02 4852 |
260 |
320 |
60 |
10.6 |
SL02 4952 |
260 |
360 |
100 |
31.2 |
|
SL02 4856 |
280 |
350 |
69 |
15.6 |
SL02 4956 |
280 |
380 |
100 |
33.1 |
|
SL02 4860 |
300 |
380 |
80 |
22 |
SL02 4960 |
300 |
420 |
118 |
51.9 |
|
SL02 4864 |
320 |
400 |
80 |
23.5 |
SL02 4964 |
320 |
440 |
118 |
54.9 |
|
SL02 4868 |
340 |
420 |
80 |
25 |
SL02 4968 |
340 |
460 |
118 |
57.8 |
|
SL02 4872 |
360 |
440 |
80 |
26 |
SL02 4972 |
360 |
480 |
118 |
60.8 |
|
SL02 4876 |
380 |
480 |
100 |
44 |
SL02 4976 |
380 |
520 |
140 |
90.5 |
|
SL02 4880 |
400 |
500 |
100 |
45.8 |
SL02 4980 |
400 |
540 |
140 |
94.6 | |
|
|
